Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

Name: Anti Rust Radial Piston Hydraulic Motor Solid Hydraulic Wheel Drive Motor
Brand: Helm Tower
Price: 1 USD

Quality Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor for sale

Brand Name : Helm Tower

Model Number : MS25

Certification : ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200pcs per month

Delivery Time : 5-8 working days

Packaging Details : Export plywood case

Performance : 100% Replace to Poclain motor

Displacement : 2004 ml/r; 2498 ml/r; 2752 ml/r; 3006 ml/r;

Drive Shaft : Wheel /spline shaft / key shaft

Brake : With brake / without brake

Speed : Single speed / double speed

Color : Black, Grey, Blue, Red, Orange

Max.Power : 90 Kw

Contact Now

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

Features:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

MS25 series Displacement Diagram:

Code	MS25
Displacement Group	8	0	1	2
Displacement(ml/r)	2004	2498	2752	3006
Theoretical torque at 10 MPa(N.m)	3186	3972	4376	4780
Rated speed(r/min)	100	80	63	63
Rated pressure(Mpa)	25	25	25	25
Rated torque(N.m)	6550	8200	9000	9850
Max pressure(Mpa)	31.5	31.5	31.5	31.5
Max torque(N.m)	8100	10100	11150	12150
Speed range(r/min)	0-145	0-137	0-125	0-115
Max power(kW)	90

MS25 Applications:

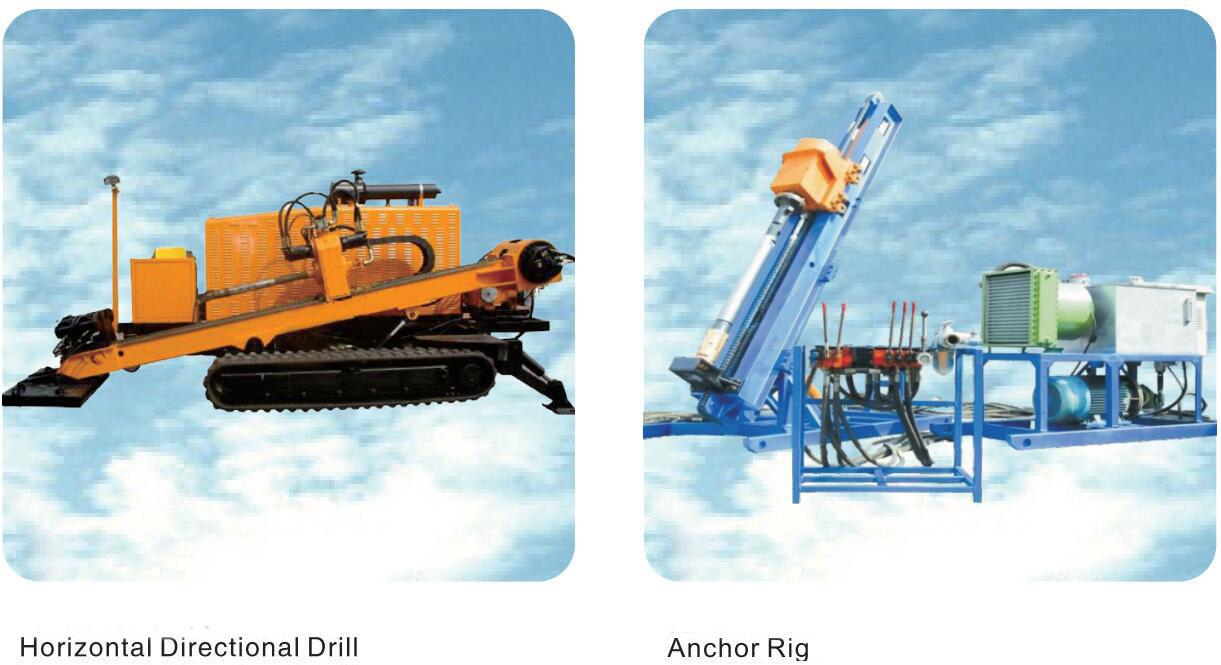

Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

MS25 Connection Dimension

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor

High precision testing facilities and experienced inspectors.
